NFS, Dynamic PAT 등을 활용한 실습

NFS, Dynamic PAT 등을 활용한 실습

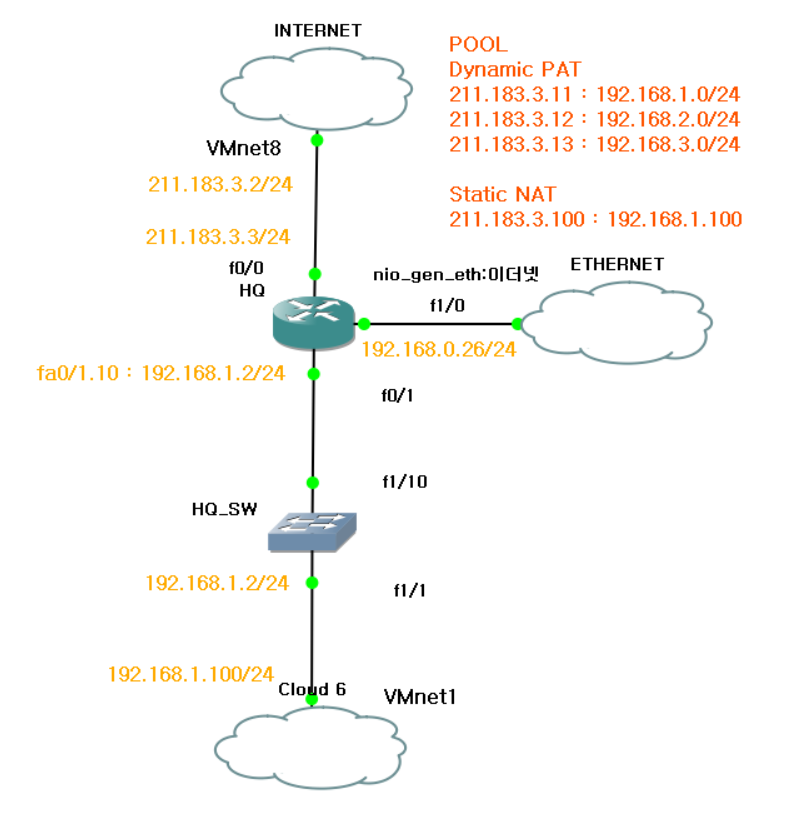

웹서버 백업 및 본사를 통한 인터넷 통신

HQ

config t
# 초기 설정
int fa0/0
ip add 211.183.3.3 255.255.255.0
no sh
int fa1/0
ip add 192.168.0.26 255.255.255.0
no sh
int fa0/1
no sh
# sub-interface에서 VLAN 10 담당
int fa0/1.10
encap dot1Q 10
ip add 192.168.1.2 255.255.255.0
exit
# 정적 라우팅
ip route 192.168.2.0 255.255.255.0 192.168.0.22
ip route 192.168.3.0 255.255.255.0 192.168.0.22
# default routing
ip route 0.0.0.0 0.0.0.0 211.183.3.2
# ACL 생성
access-list 1 permit 192.168.1.0 0.0.0.255
access-list 2 permit 192.168.2.0 0.0.0.255
access-list 3 permit 192.168.3.0 0.0.0.255
access-list 99 permit host 192.168.0.22
# telnet 설정
enable password test123
line vty 0 4
password test123
login
access-class 99 in
exit
# IP pool 생성
ip nat pool 1 211.183.3.11 211.183.3.11 prefix-length 24
ip nat pool 2 211.183.3.12 211.183.3.12 prefix-length 24
ip nat pool 3 211.183.3.13 211.183.3.13 prefix-length 24
# dynamic PAT
ip nat inside source list 1 pool 1 overload
ip nat inside source list 2 pool 2 overload
ip nat inside source list 3 pool 3 overload
# static NAT
ip nat inside source static 192.168.1.100 211.183.3.100
# outside 정의
int fa0/0
ip nat outside
# inside 정의
int range fa1/0 , fa0/1
ip nat inside

HQ_SW

erase flash
config t
vlan dat
vlan 10 name WEB
exit
int fa1/1
sw acc vlan 10
no sh
int fa1/10
sw mode trunk

Web server

yum -y install httpd nfs-utils
setenforce 0
systemctl stop firewalld
systemctl start httpd
mkdir /storage
mount -t nfs 192.168.2.100:/external /storage
vi /etc/cron.hourly/backup.sh

backup.sh

#!/bin/sh

FROM_DIR="/home"
TO_DIR="/storage"
DATE=`date +%H%M%S`
BACKUP_FILE=backup_${DATE}.tar.gz
tar zcfP ${TO_DIR}/${BACKUP_FILE} ${FROM_DIR}

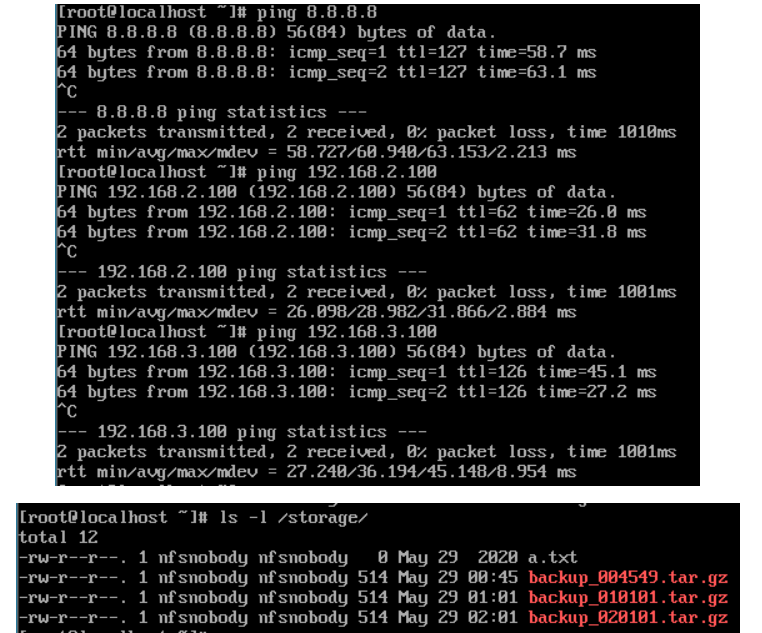

결과
